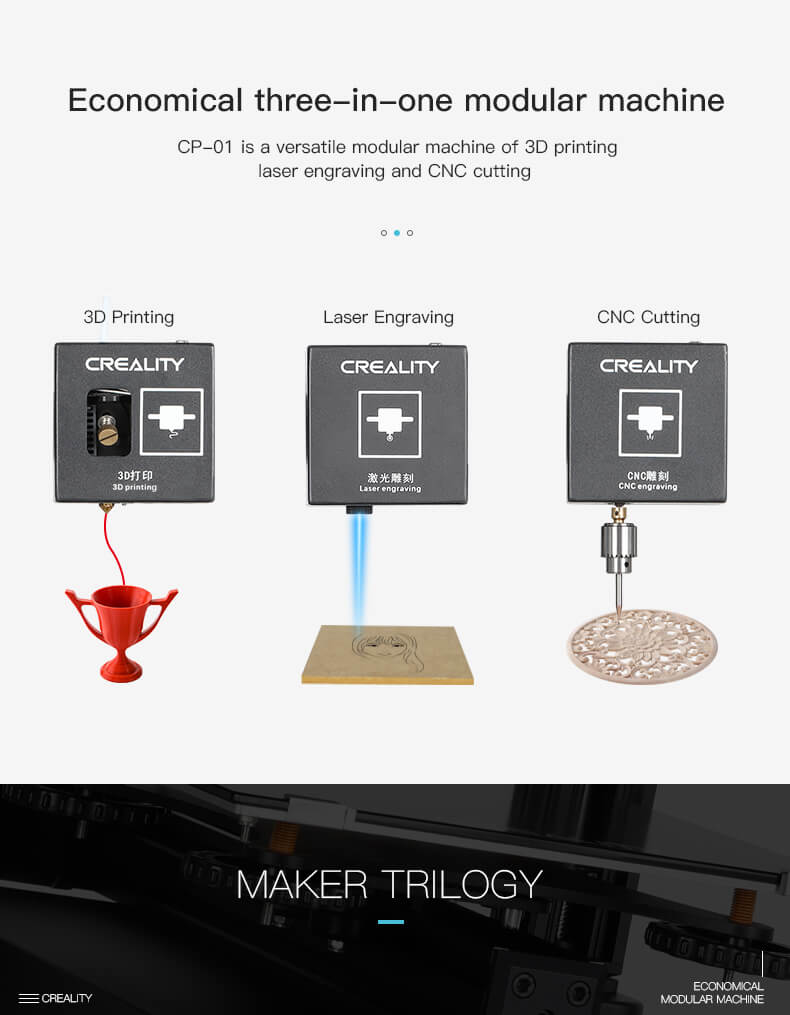

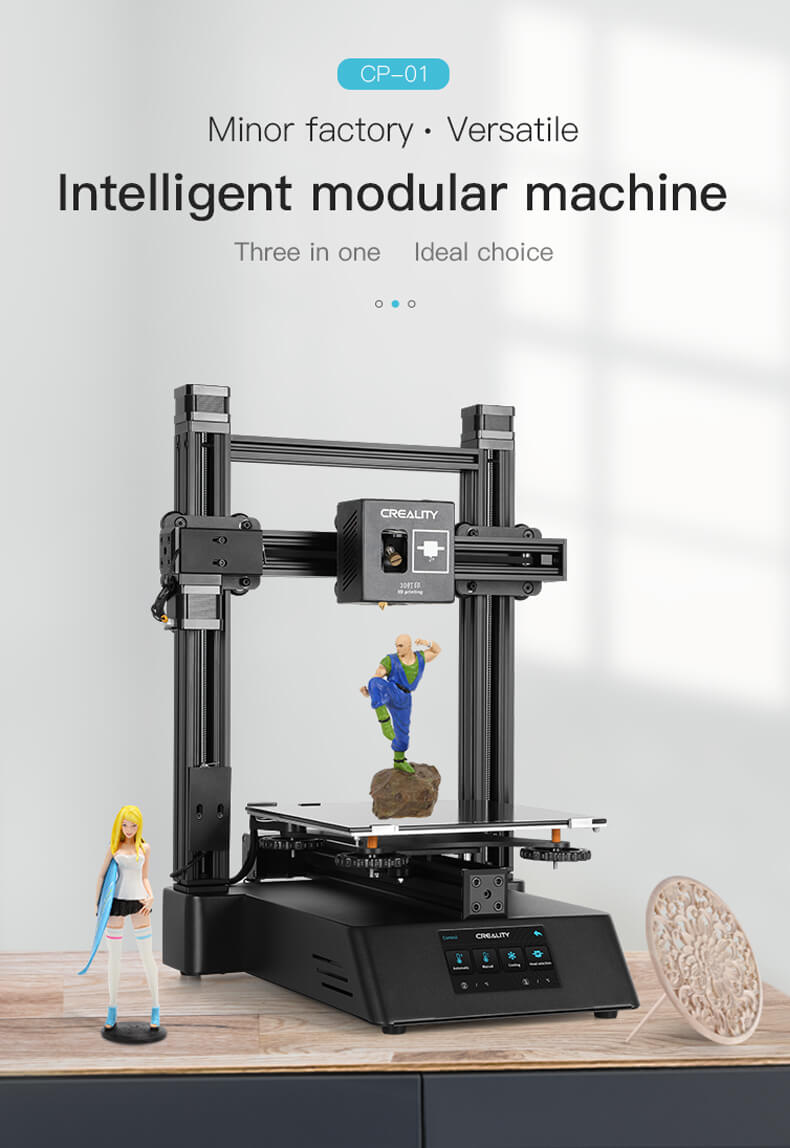

Multifunction 3-in-1 machine: With 3D printing, laser engraving, CNC cutting, three effects to give you a new operating experience. 3D printing model is fine, the layer is nearly absent, the CNC cutting model is smooth, and the surface is flat; the laser engraving positioning error is small, and the engraving model is exquisite.

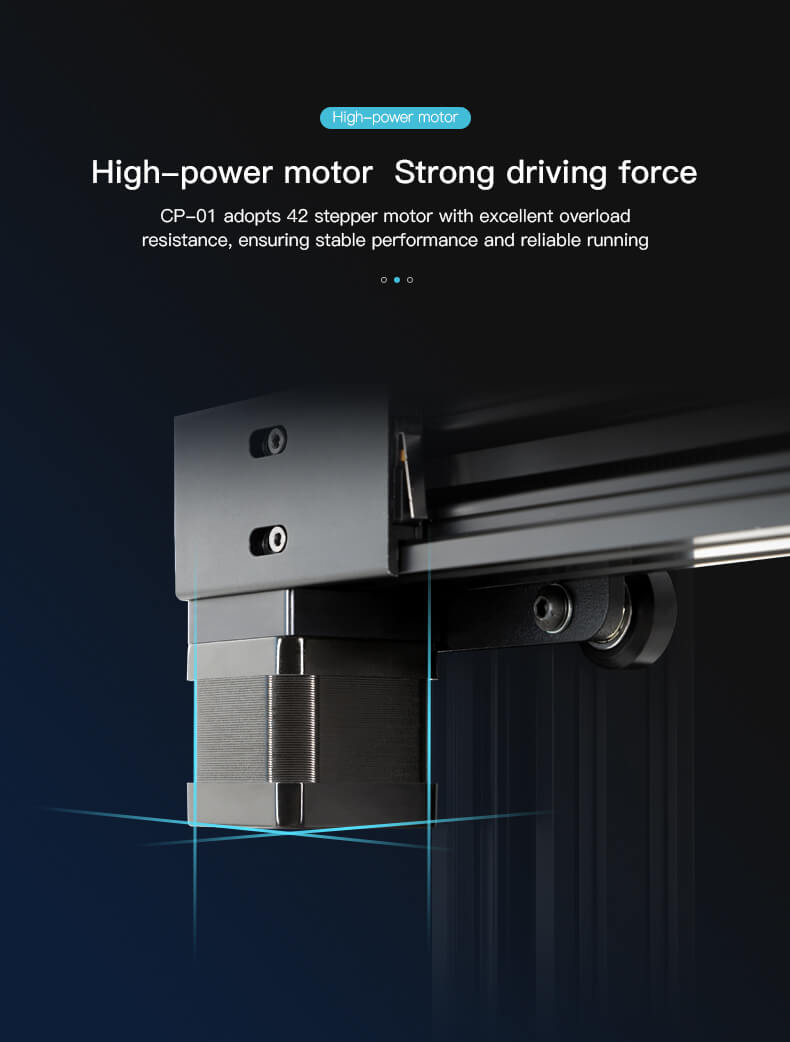

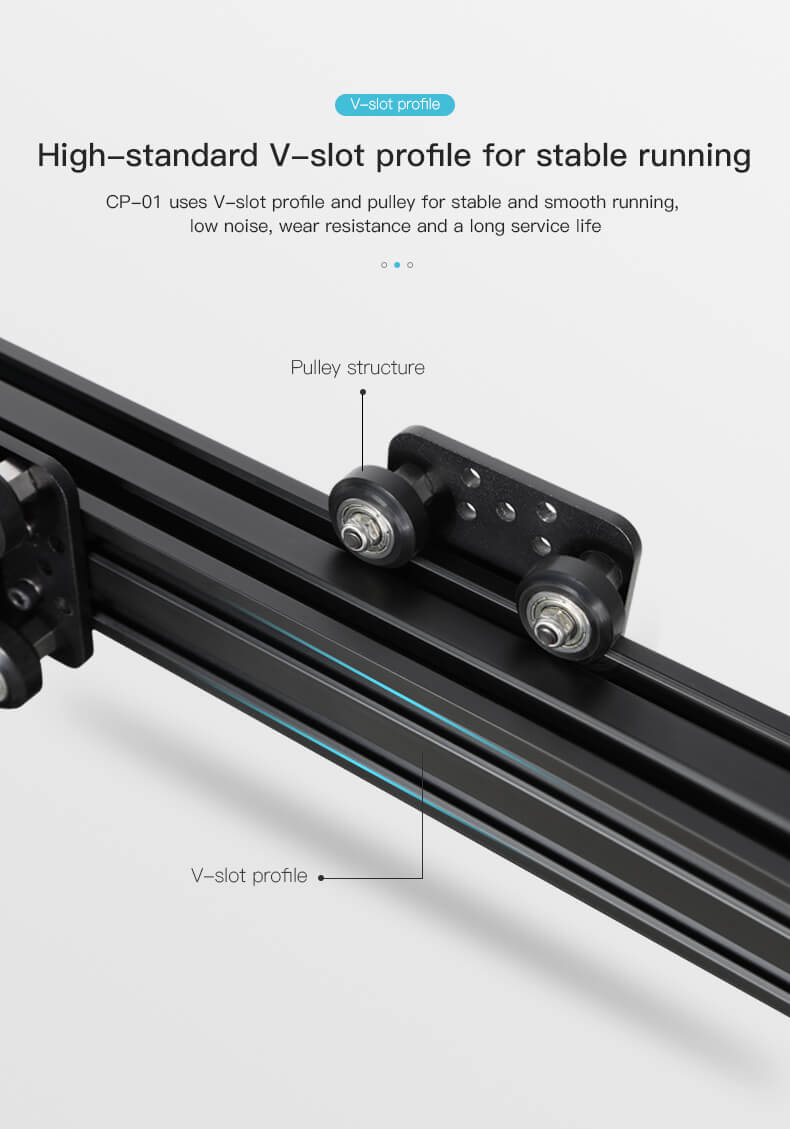

Stable operation: full belt drive, intersecting the screw guide rail, the stability is even better, to ensure the high quality of the model. Printing speed 10-80mm/s. Laser power: less than 0.5W.

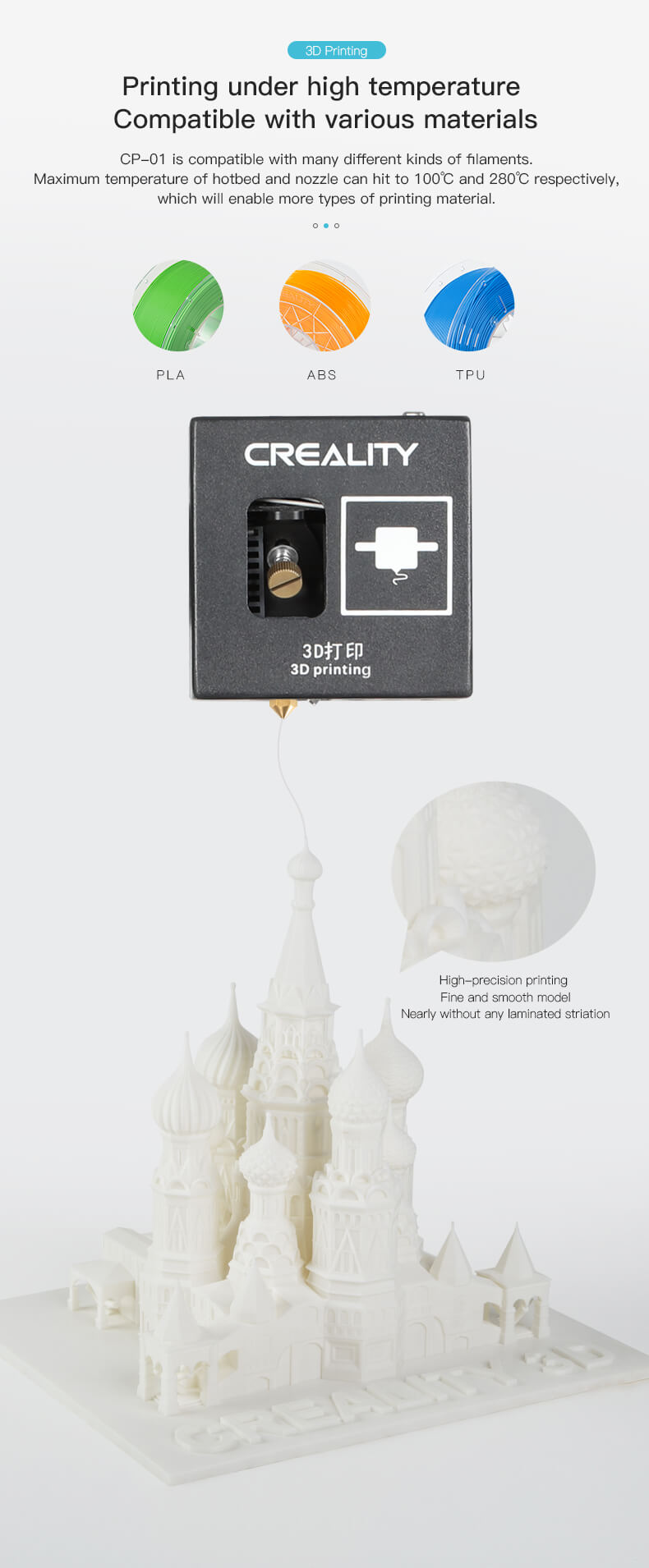

Support a variety of filaments: 3D Printing materials: PLA, ABS, TPU, PVA; CNC carving and laser engraving materials: wood, paper, PCB, plastic,leather etc.

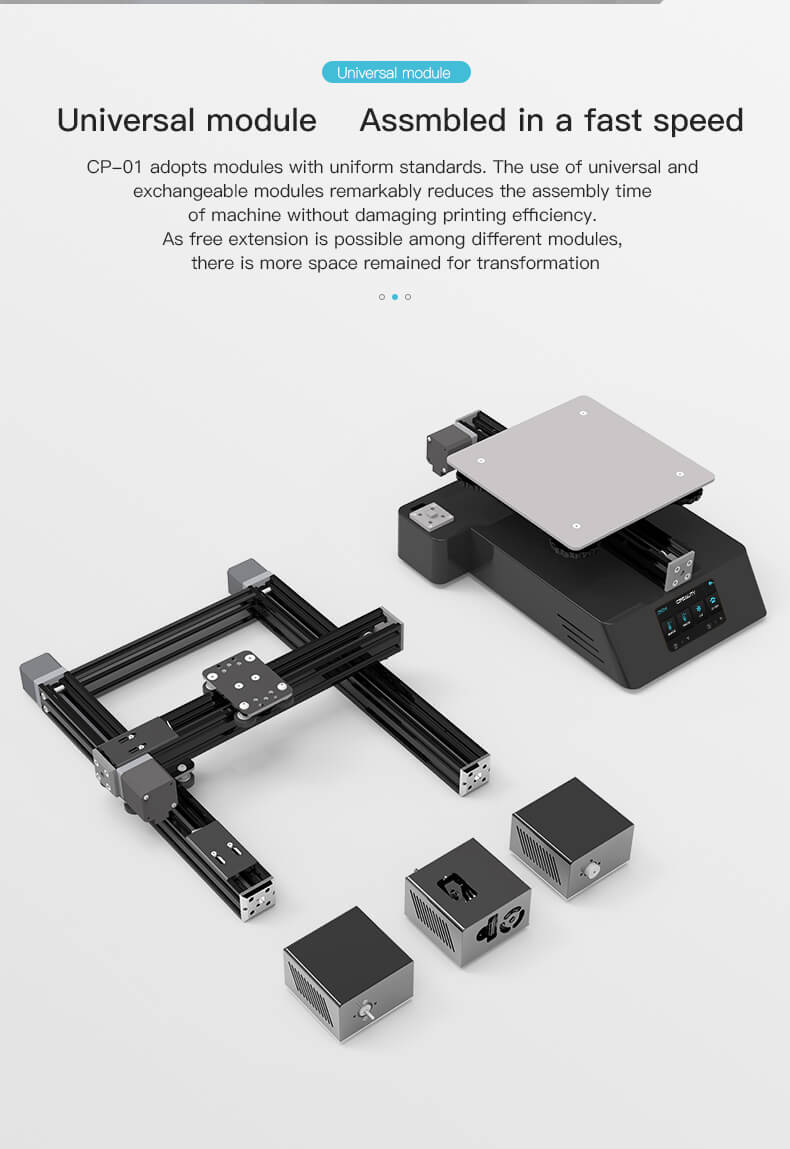

Easy assembly: The modules are interchangeable and can be assembled quickly and universally in 30 seconds.

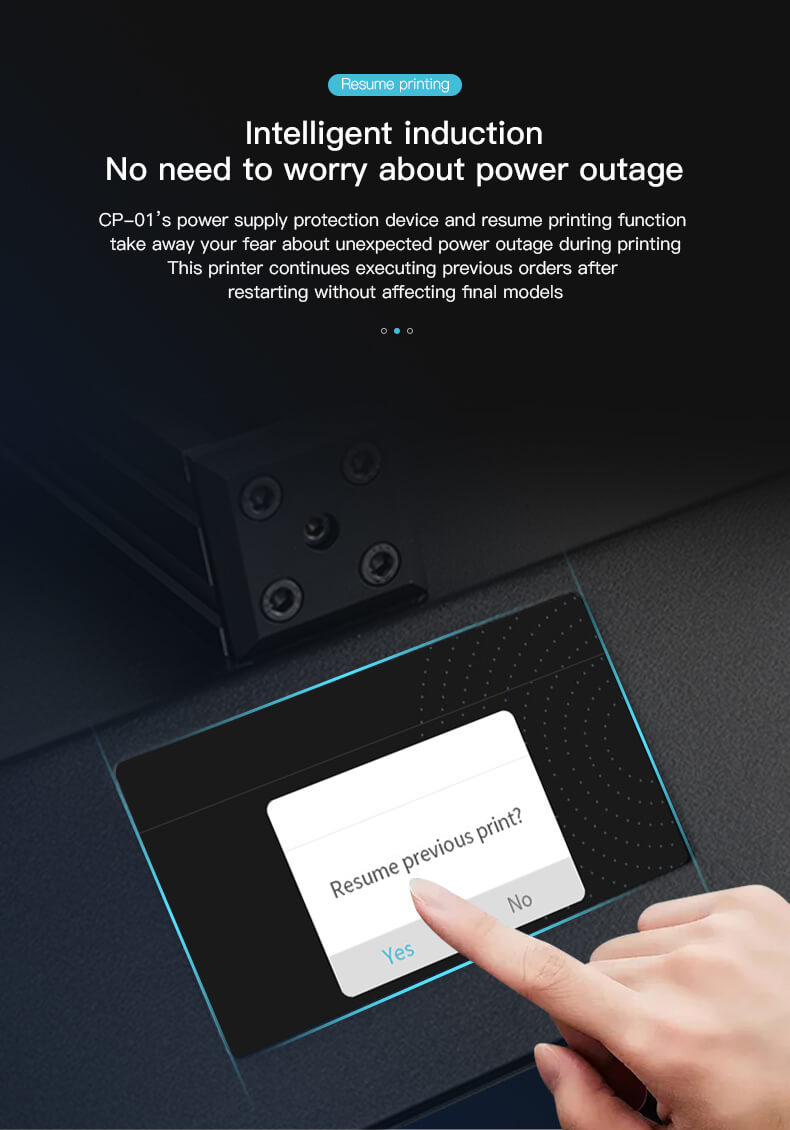

Trustworthy and convenient: High-quality wide-voltage power supply, mature technology, safe and secure, automatic voltage regulation, easy to use. TF card offline printing or online printing, power failure continued support.

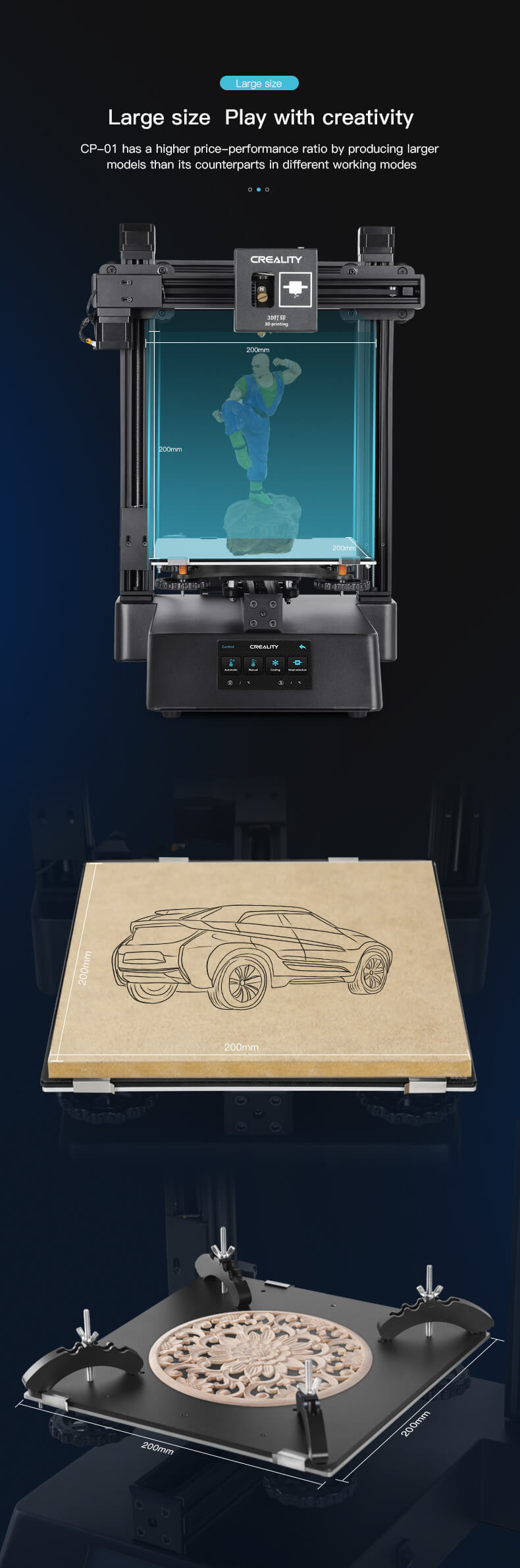

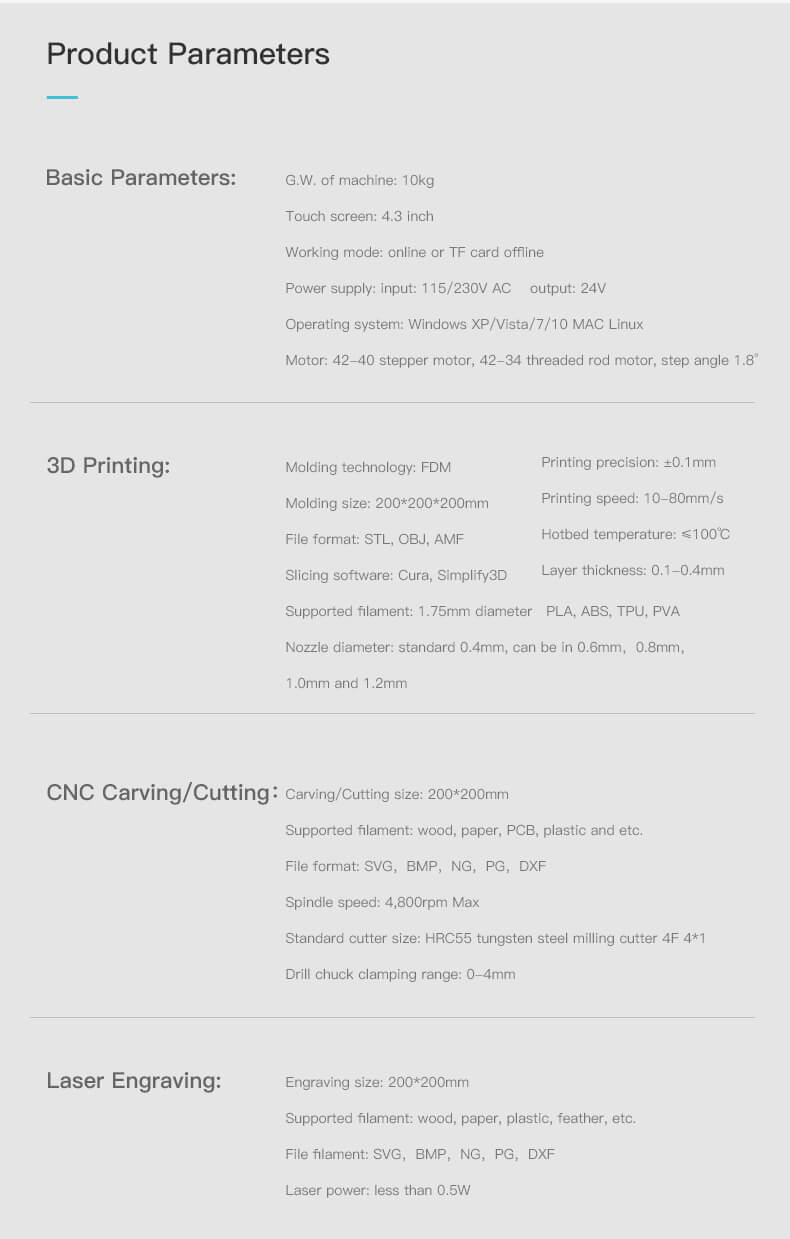

Molding platform size : 200 × 200 × 200mm CNC engraving / cutting: 200 × 200mm Laser engraving: 100 × 190mm Printing accuracy : ±0.1mm Print layer thickness 0.1-0.4mm Nozzle diameter 0.4mm (0.6mm, 0.8mm, 1.0mm, 1.2mm optional) Printing speed 10-80mm/s Software requirements Random software Cura, Simplify3D Print data format STL, OBJ, AMF Operating system Windows XP/Vista/7/10, MAC, Linux Consumable specifications Printing materials PLA, ABS, TPU, PVA Physical parameter Floor working temperature ≤100°C Power requirements Input: AC 100-240V, output: 24V Other parameters Control panel 4.3 inch touch screen Connection method TF card offline printing or online printing Power failure continued support Product material Industrial grade aluminum profile Product weight 10kg Other parameters CNC engraving / cutting: Support materials: wood, paper, PCB, plastic, etc. File format: SVG, BMP, NG, PG, DXF Spindle speed: 4800rpm Max With tool size: HRC55 tungsten steel milling cutter 4F 4*1 Drill chuck support range: 0-4mm Laser engraving: Support materials: wood, paper, plastic, leather, etc. File format: SVG, BMP, NG, PG, DXF Laser power: less than 0.5W
