Silicone Heater Pad 400x400mm - 220V 600W For Creality CR-10 S4
Silicone Heater Pad 400x400mm - 220V 600W For Creality CR-10 S4
Silicone Heater Pad 400x400mm - 220V 600W For Creality CR-10 S4

Silicone Heater Pad 400x400mm - 220V 600W For Creality CR-10 S4

inklusive moms. Shipping calculated at checkout.

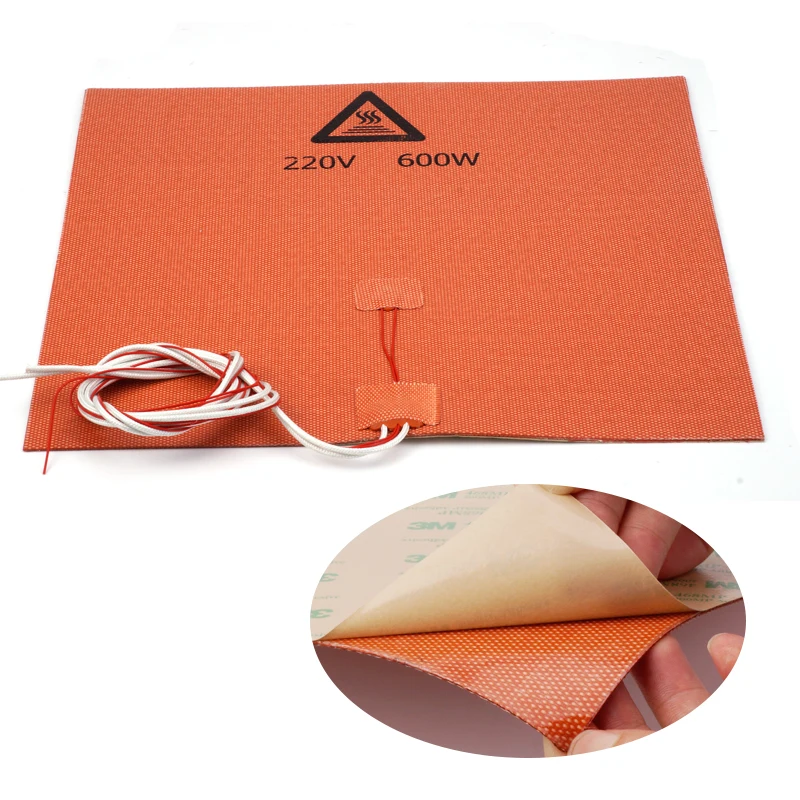

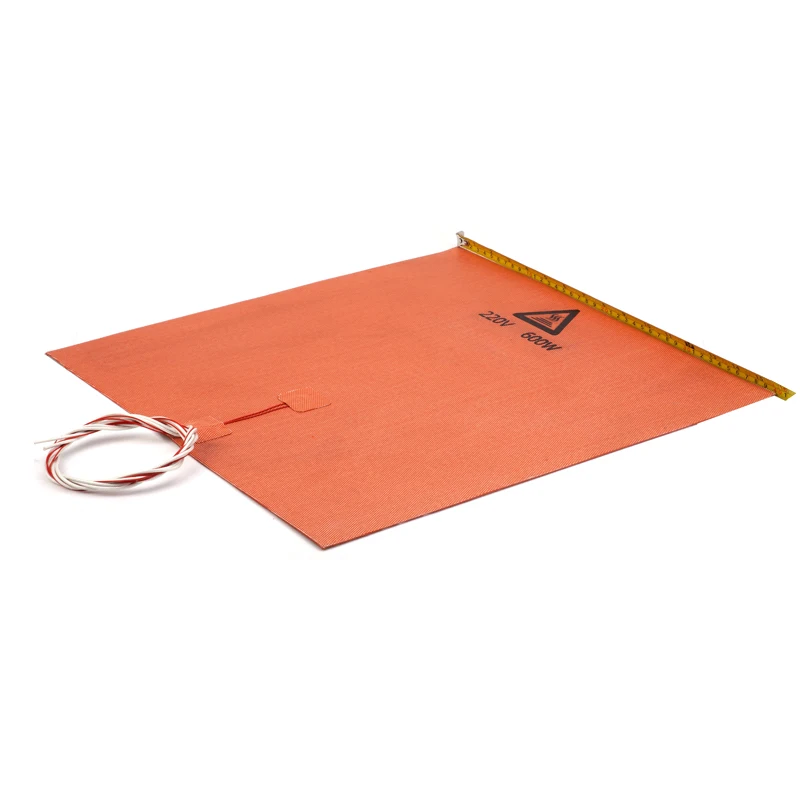

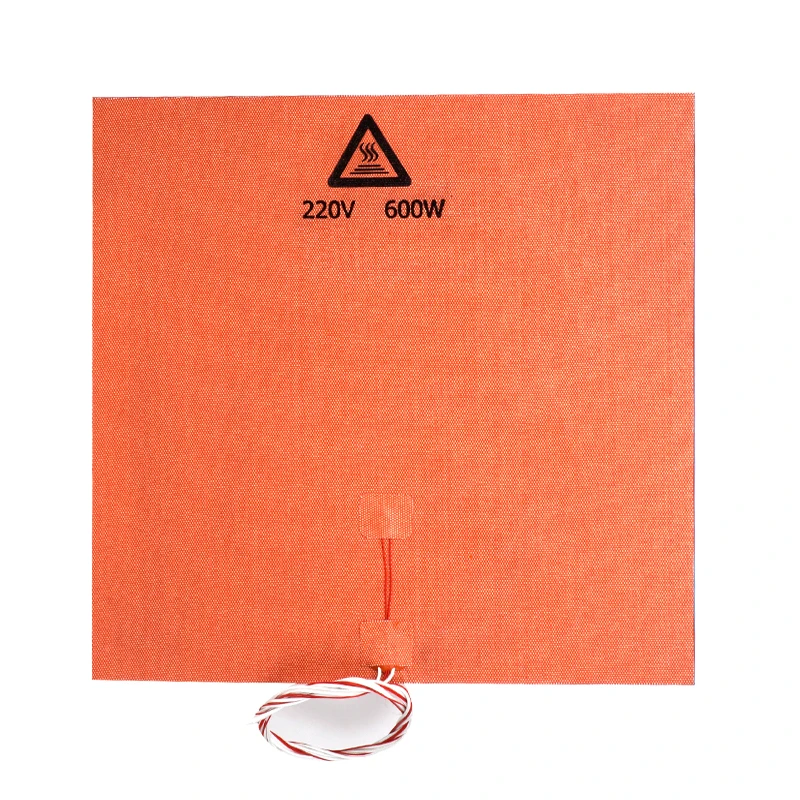

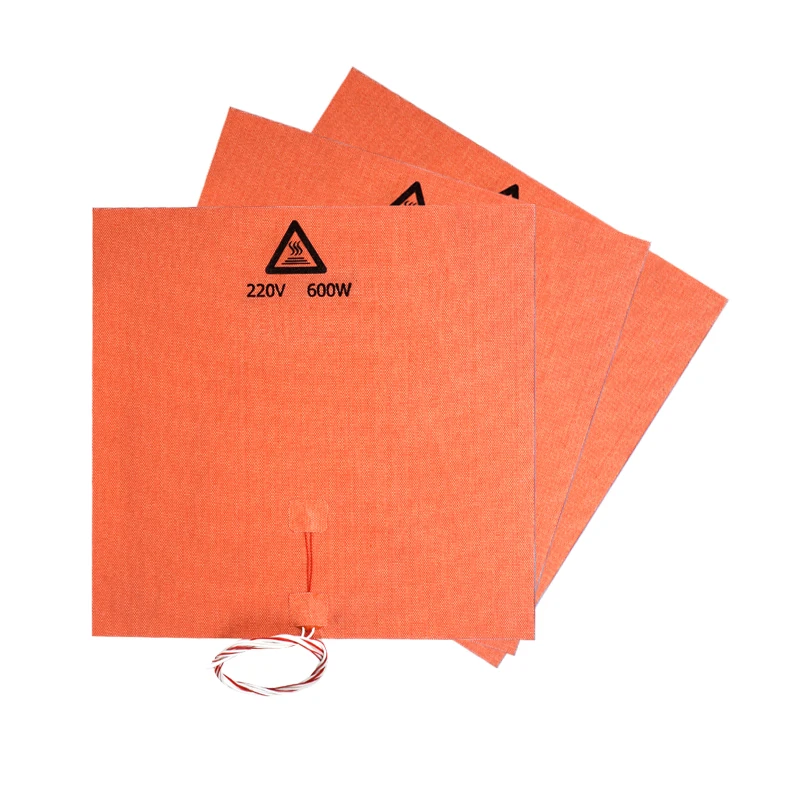

Silicone Heater Pad

400x400mm - 220V 600W For Creality CR-10 S4 3D Printer Bed With Adhesive Backing



Size: 400mm x 400mm ( approx. 15.7" x15.7")
Power: 600W
Accessories:
1m power cable(white)
Surface mount NTC 100K thermistor + 1m extension wire(red)
3M adhesive backing
4 pre-made screw holes as per drawing


Important Notes:
Please heat only when after it's mounted onto the build plate (Aluminum plate recommended).

 Package included:
1* silicone heater





supply voltage:

0-400V,Please contact us for other voltages.

Insulation Material:

Silicone Rubber Coated Fiberglass

Max.Operating Temperature:

260 Deg C or 500 Deg F

Max.Power Density:

5w/sq.cm depending on application

Heating Elements

Wire Wound or Etched Foil.Please contact

Resistance Tolerance:

about +/- 5%

Thickness:

1.5mm

Flammability:

Flame retardant

Thermal Protection:

On board thermal fuse,thermostat,thermistor and PT100 are available as part of your thermal management solution.

Power Leads:

High temperature PTFE or Silicone insulation leads
